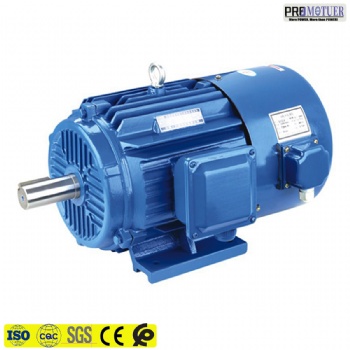

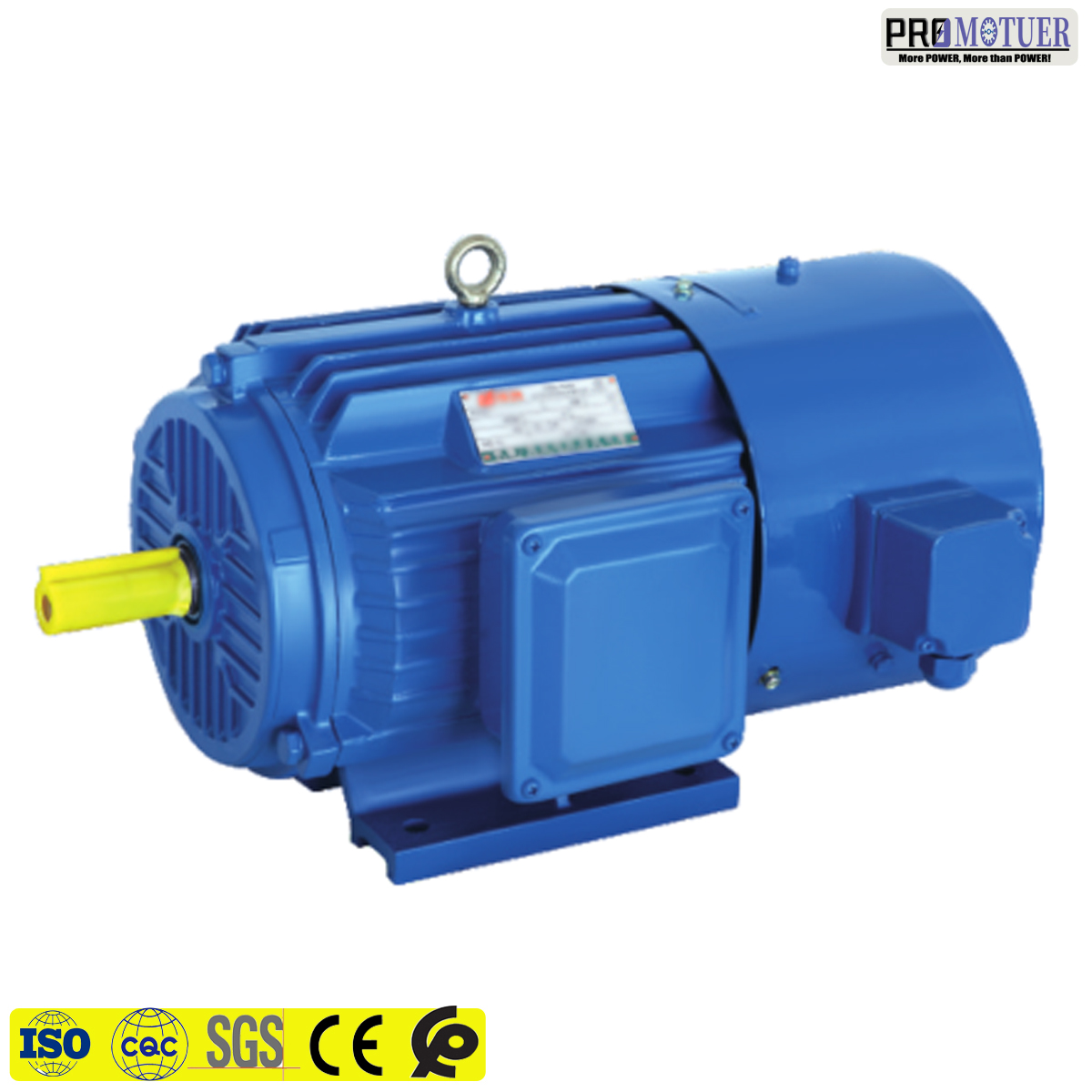

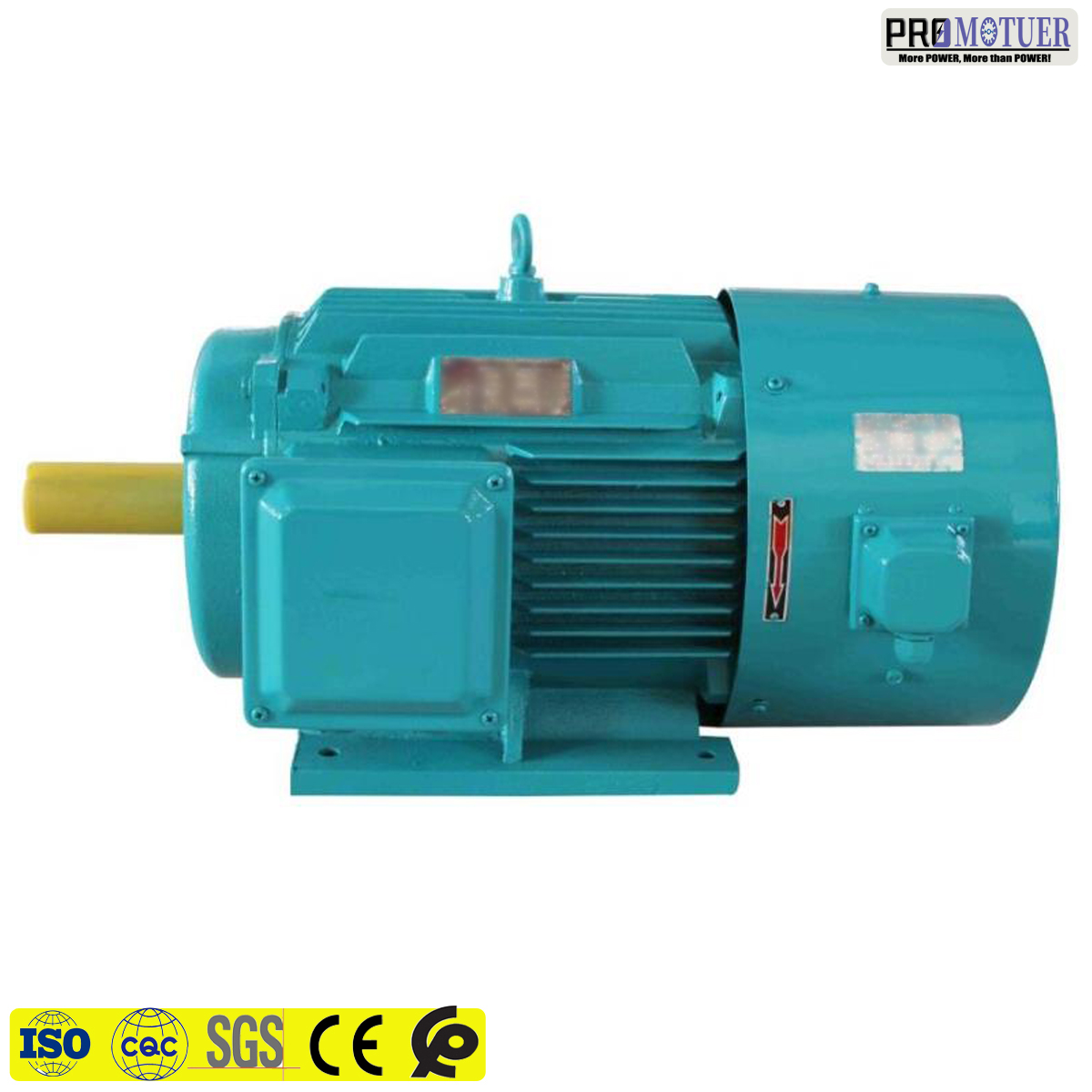

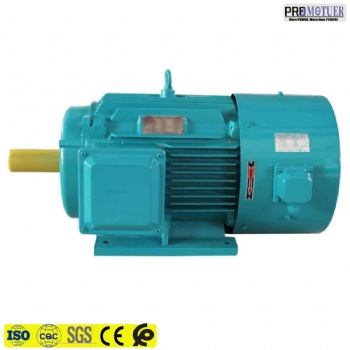

YVP series pole-changing multi-speed asynchronous motor

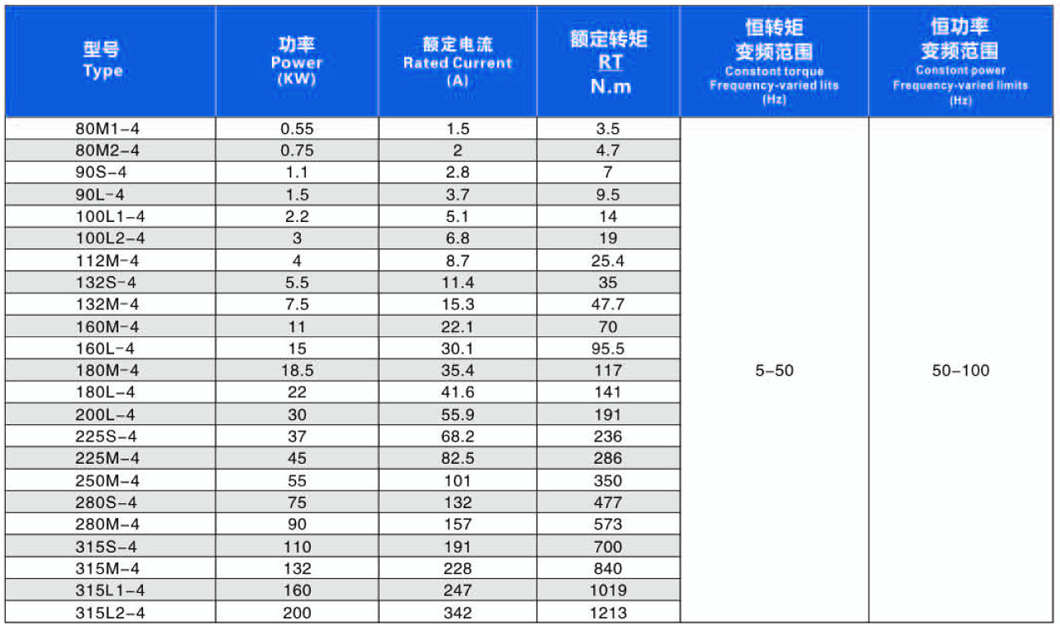

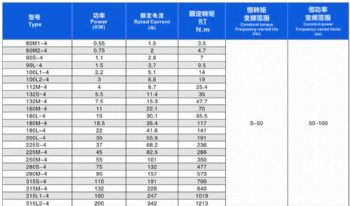

Parameter:

• Frame: 80-315mm.

• Power: 0.55-200KW.

• Frequency range: 3 (5) - 100Hz

• Rated Frequency：50Hz.

• Rated Speed: 4P

• Cooling method: IC416.


• Protection class: IP55.

• Insulation class: F

• Mounting type: Foot mount(B3), B5, B35, B14, B34.

Application: widely used in the areas without special requirements, such as cutting-machines, pumps, tans, conveyors, agricuture machinery, food machinery. etc.

Feature: High efficiency and energy saving, low noise and little vibration.

Working condition: The altitude not exceeding 1000m above sea level. the ambient temperature subject to seasonal variations but not exceeding +40℃ and not less than -15℃.
