YD series double-speed asynchronous motor

Parameter:

• Frame: 80-280mm.

• Power: 0.37-85KW.

• Protection class: IP55.

• Insulation class: F

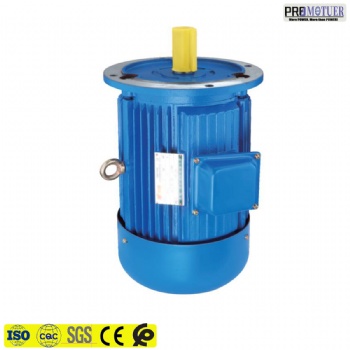

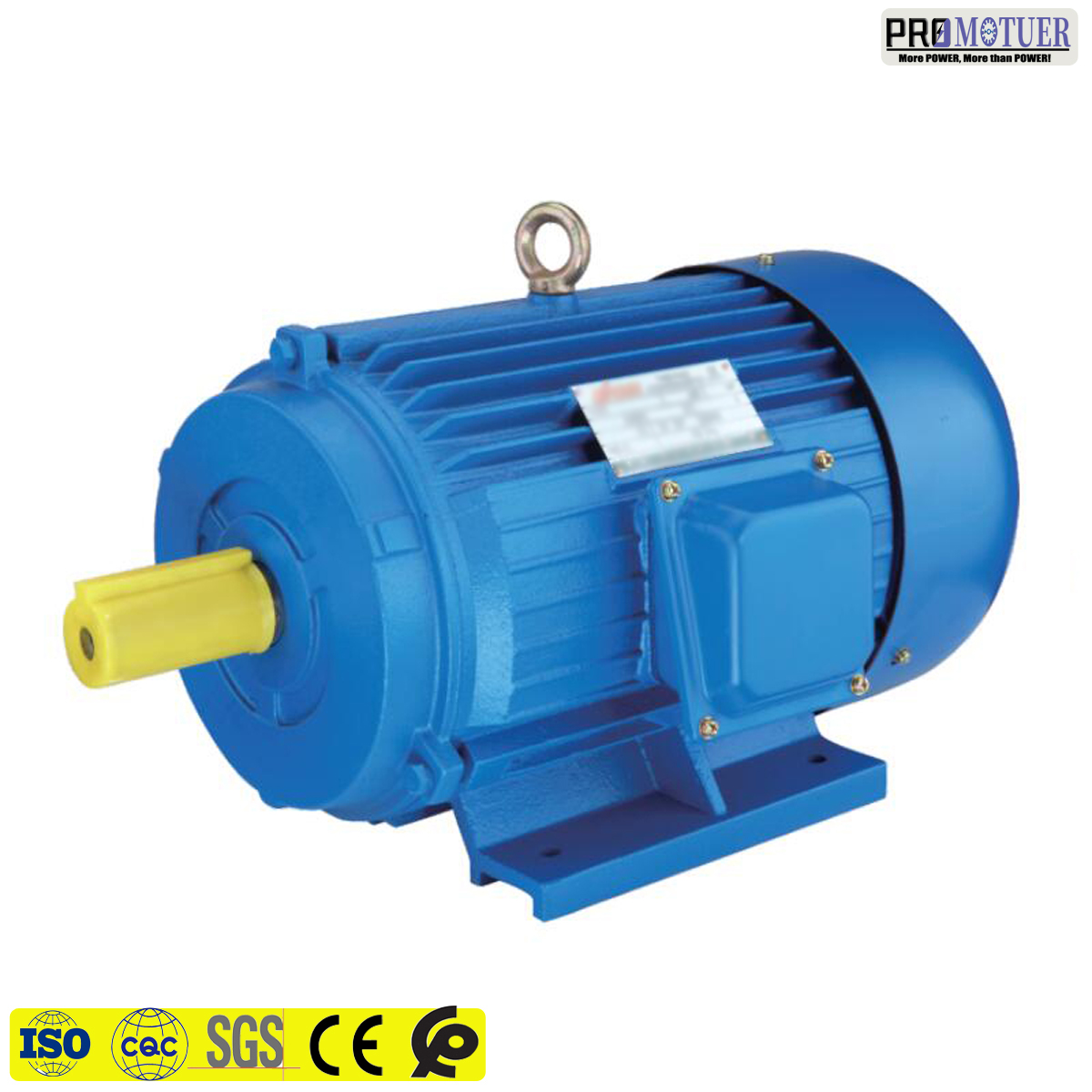

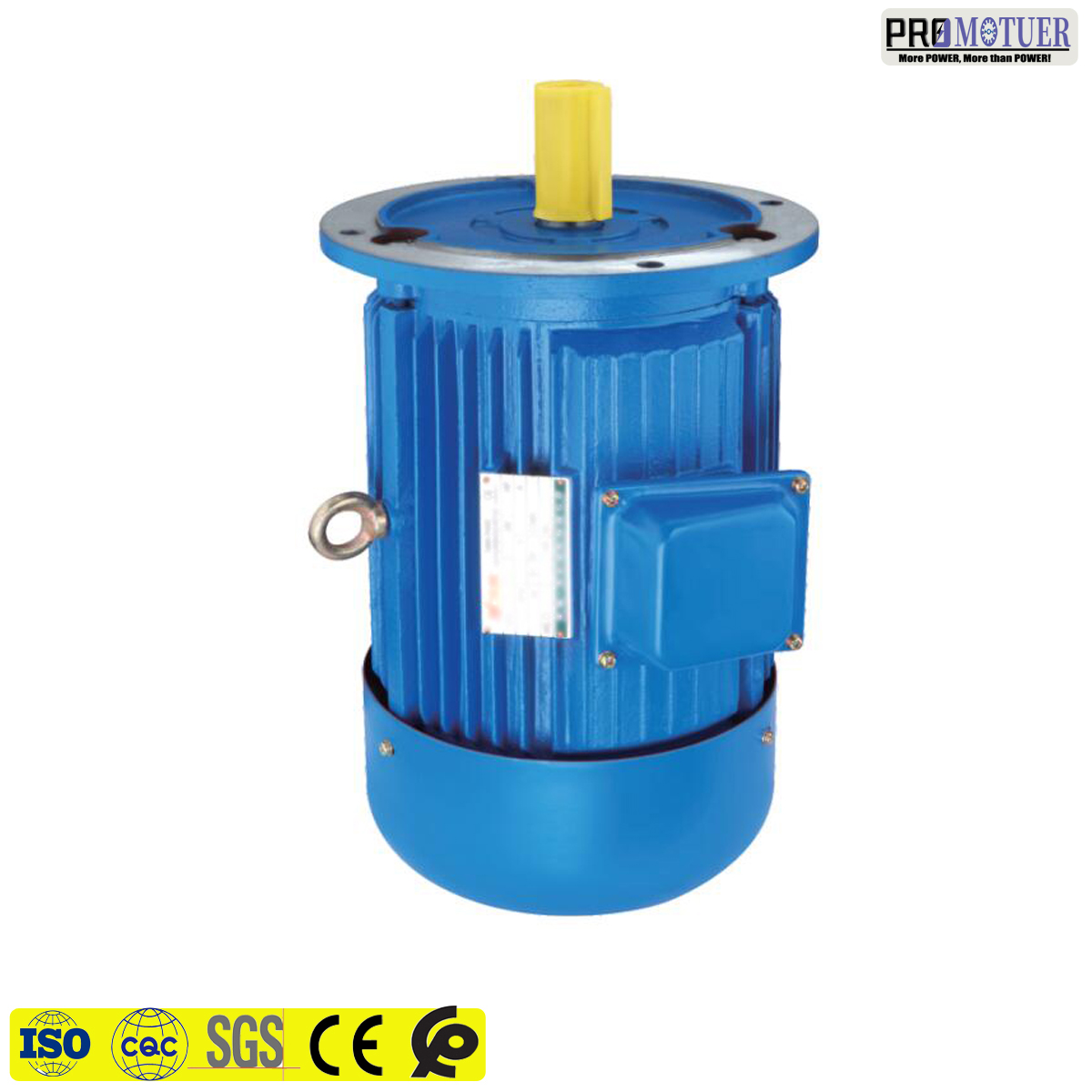

• Mounting type: Foot mount(B3), B5, B35, B14, B34.

• Pole-changing mode: doble speed

Application: widely used in such industry which have step changed of rotational speed to meet the requirements of load character, as machine tools, mining, metallurgy, textile, printing and dyeing, chemical industry and. etc.

Feature: Simplify speed-changing systems by changing the connection to obtain different output and speed, other mechanical equipment.

Working condition: The altitude not exceeding 1000m above sea level. the ambient temperature subject to seasonal variations but not exceeding +40℃ and not less than -15℃.
