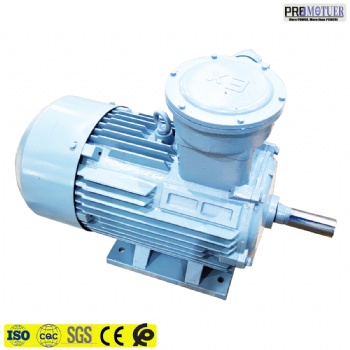

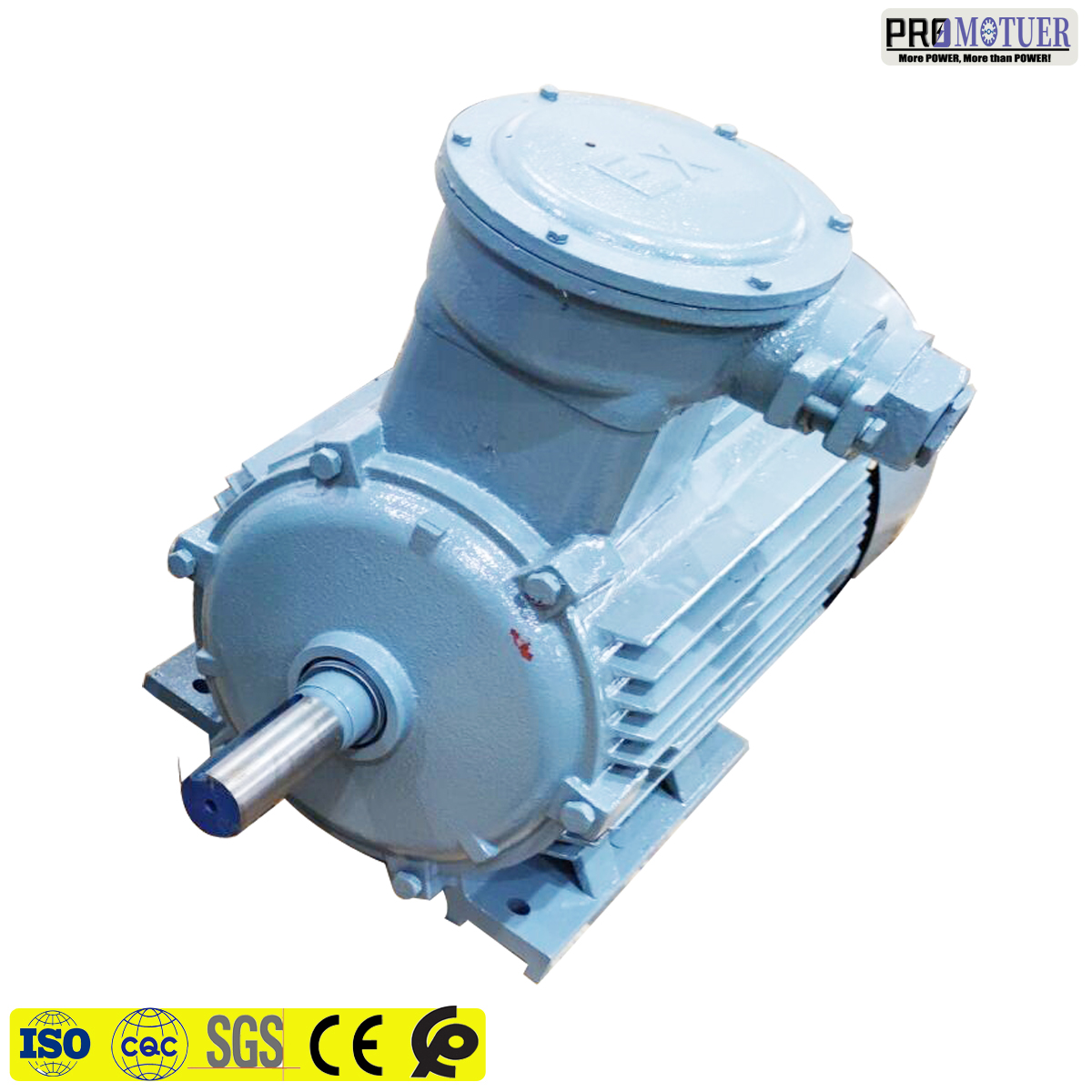

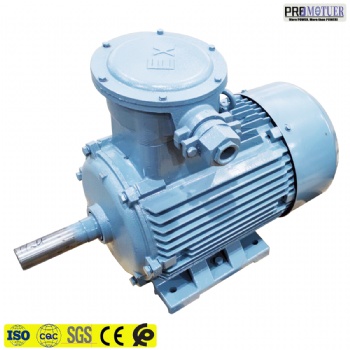

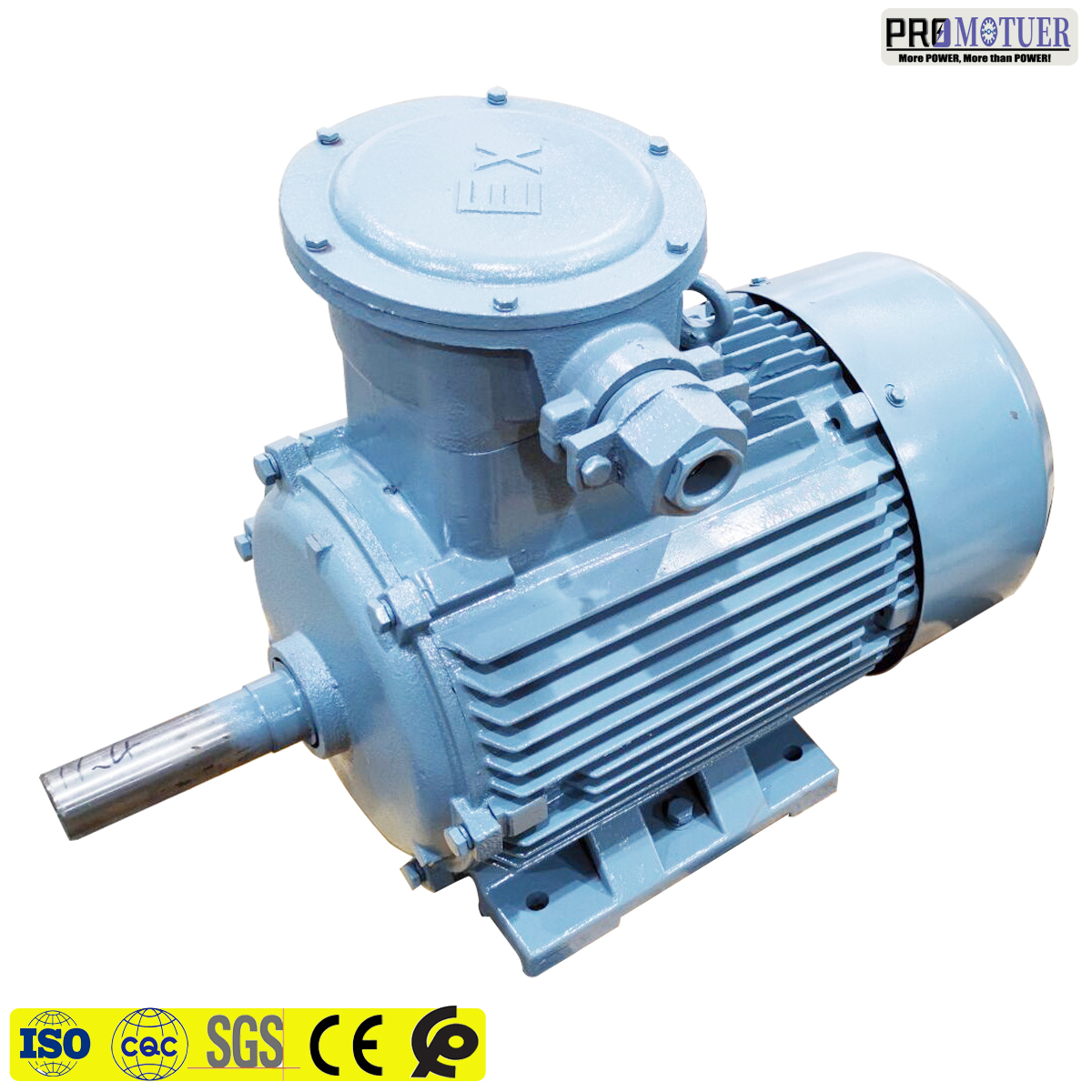

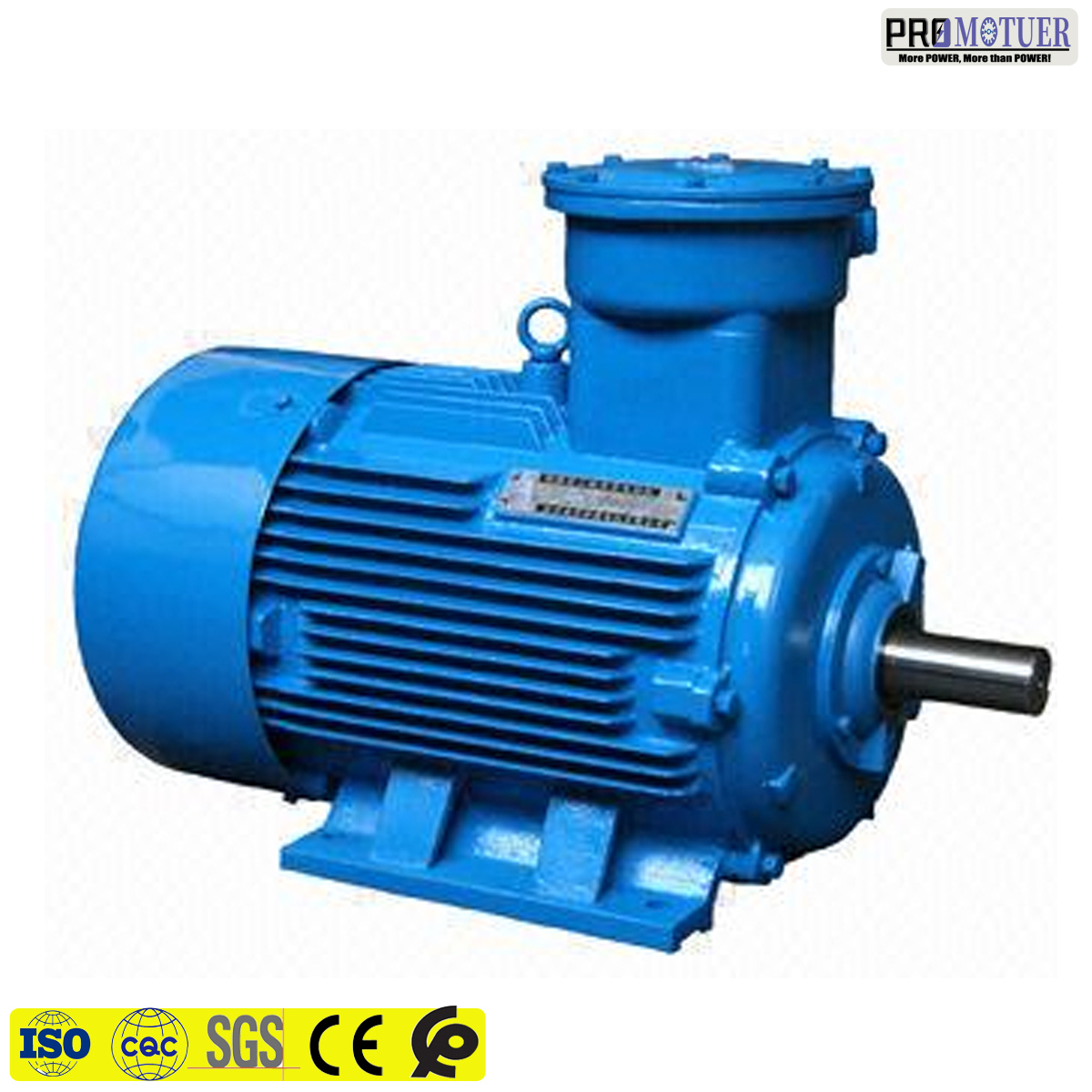

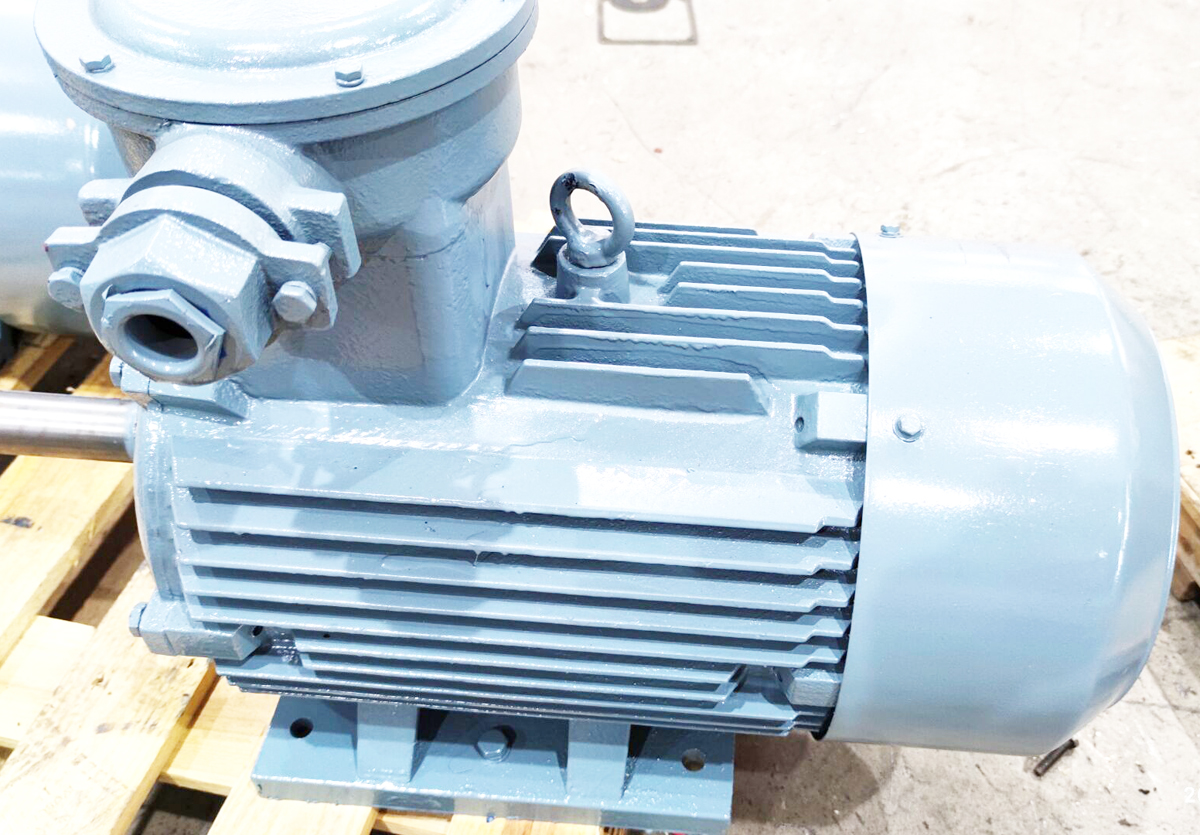

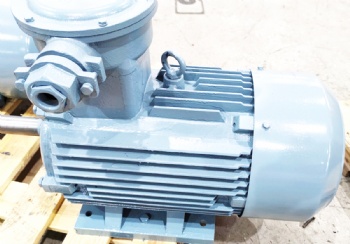

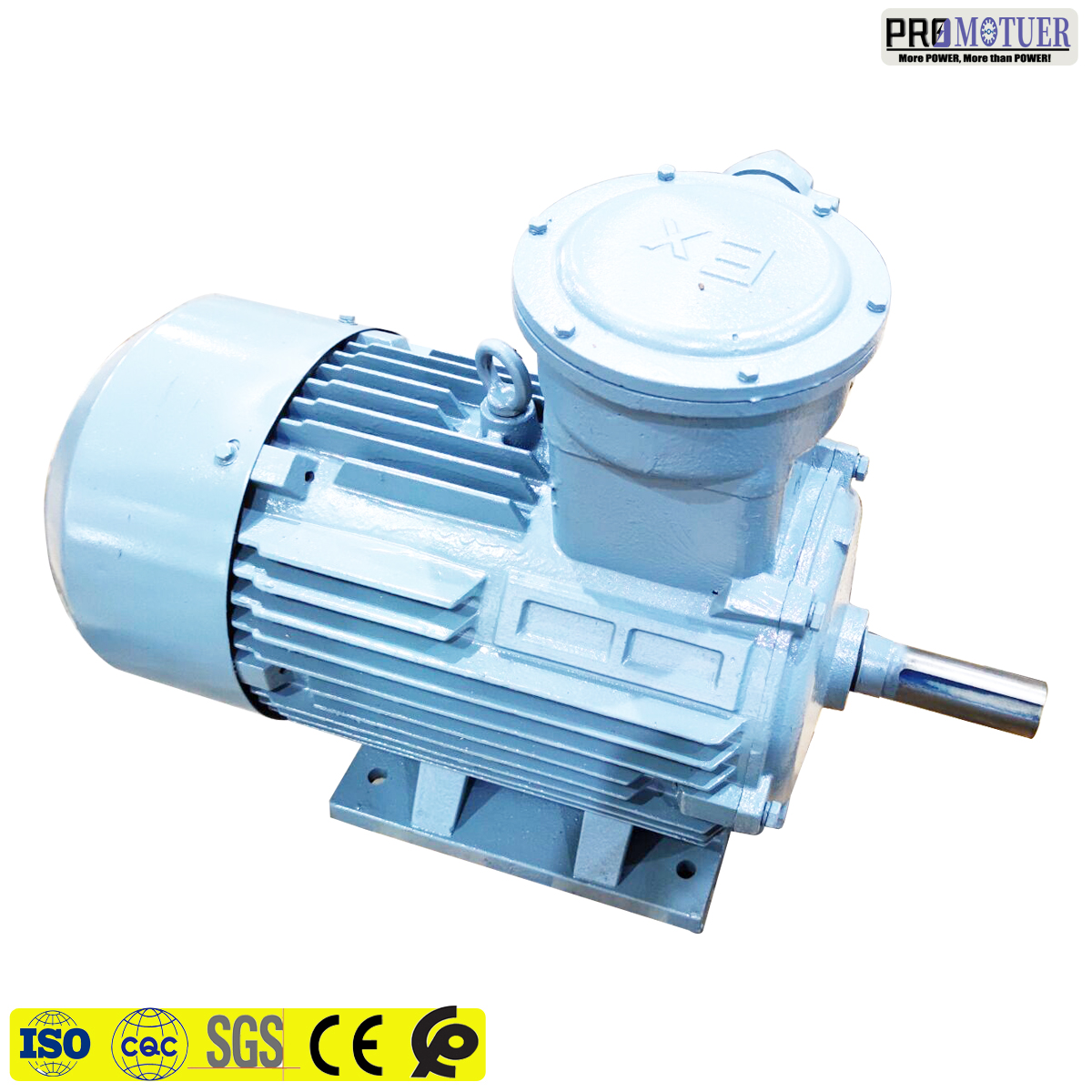

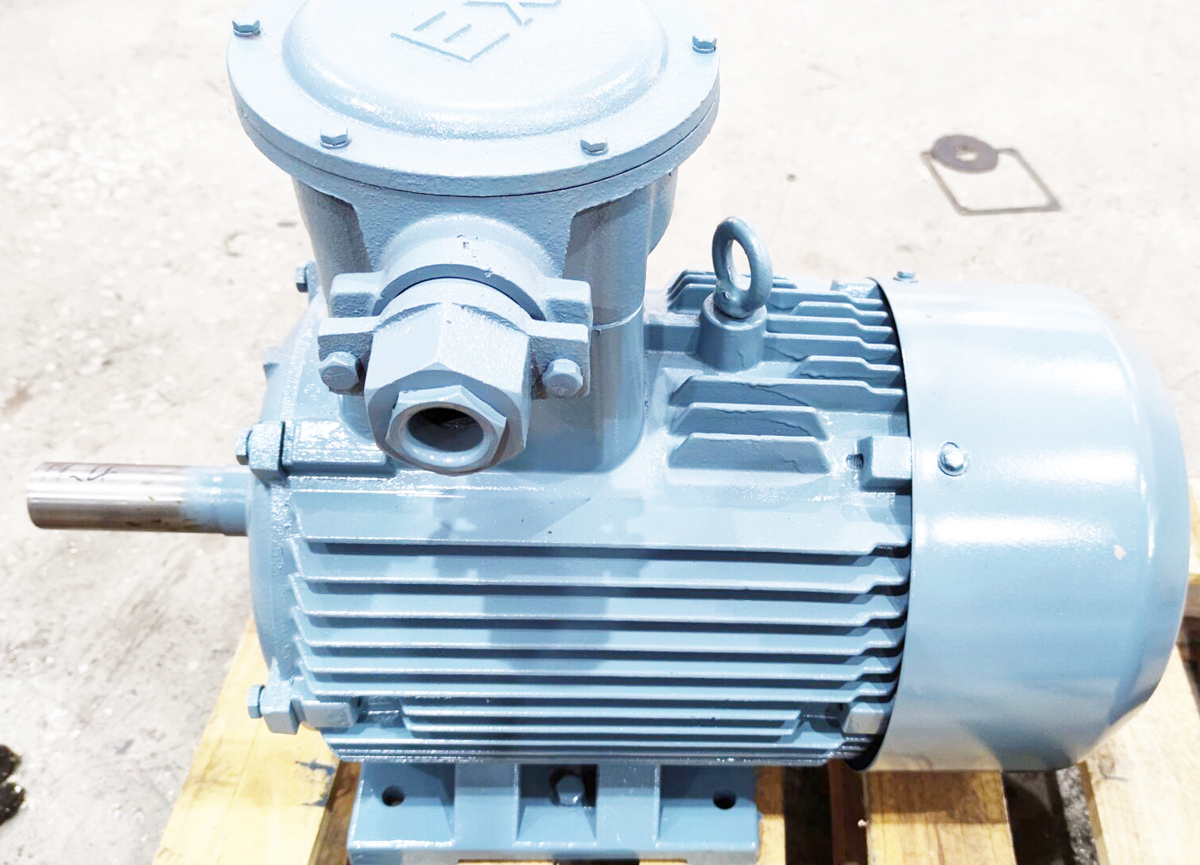

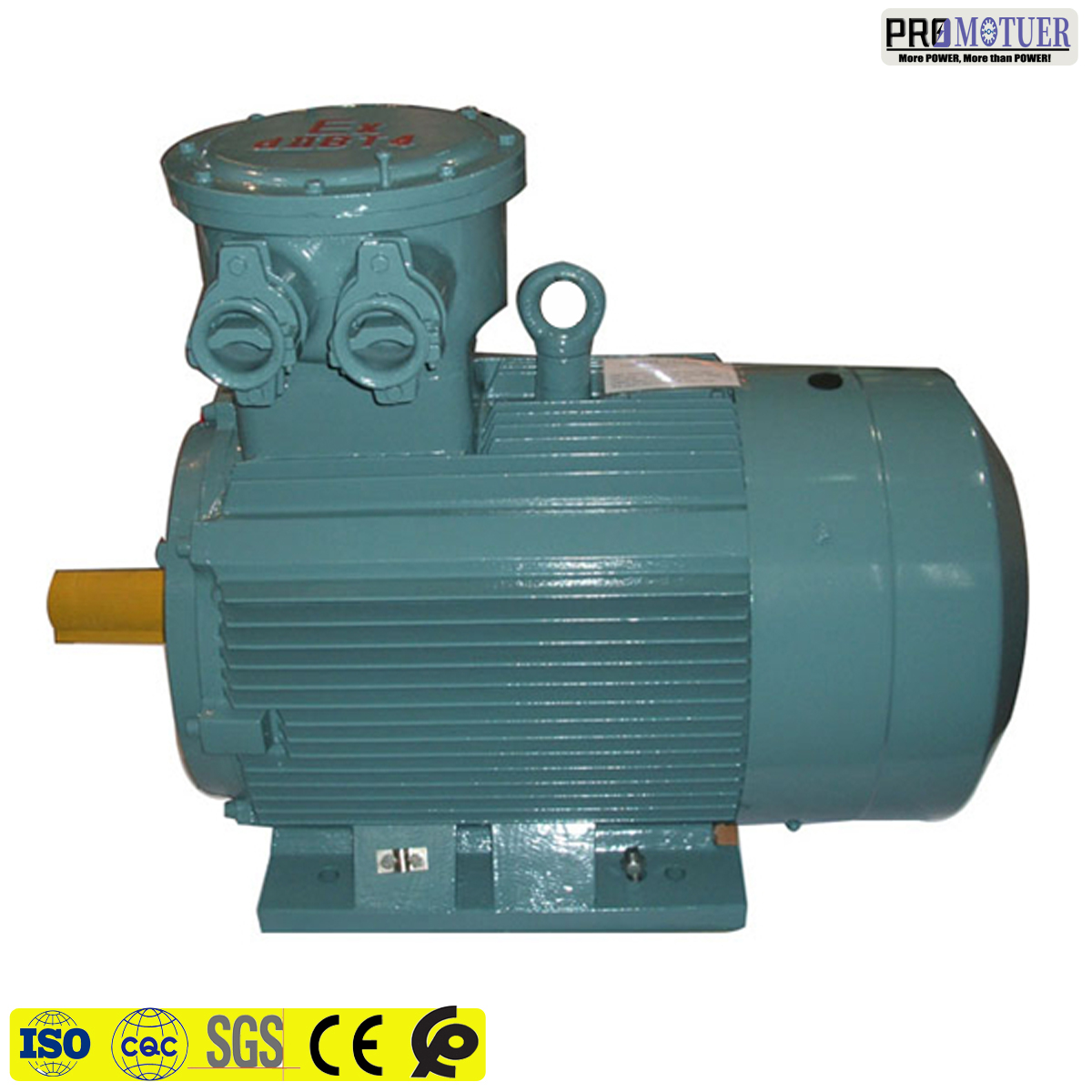

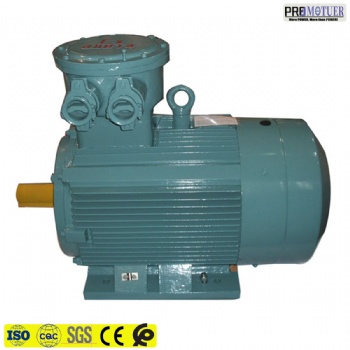

YB2 series explosion-proof three phase asynchronous motor
YB2 series explosion-proof three phase asynchronous motor

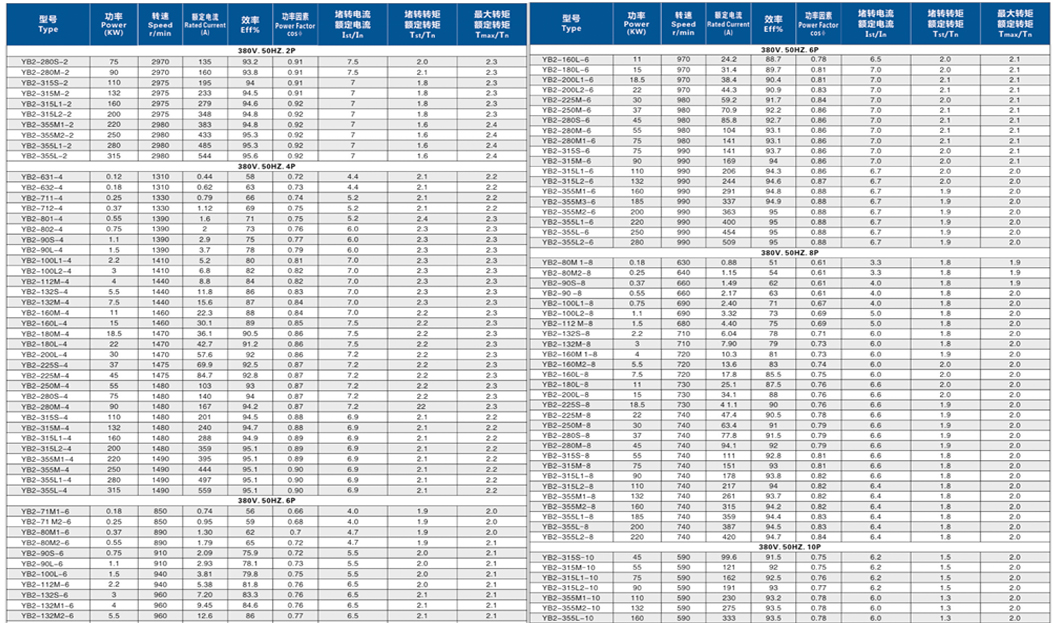

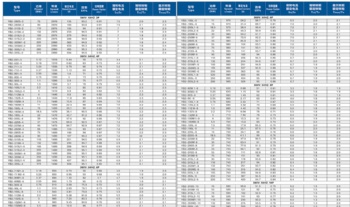

Parameter:
Frame: 80-400mm.
Power: 0.37-630KW.
Protection class: IP55.
Insulation class: F
Mounting type: Foot mount(B3), B5, B35, B14, B34.
Cooling method: IC411.
Application: Mine flame-proof type( I type) is suitable for occasions such as mine methane, fixed equipment(non working face), factory flame-proof( II type) is used in petroleum and chemical explosive mixed occasions as a general rotation power etc.
Feature: Flame-proof performance in compliance with GB3836.1, GB3836.2, terminal box with three or six terminals for rubber jacket cable and steel condiut entry.
Working condition: Factory use the max temperature of 40℃, coal mine use dont exceed 35℃
