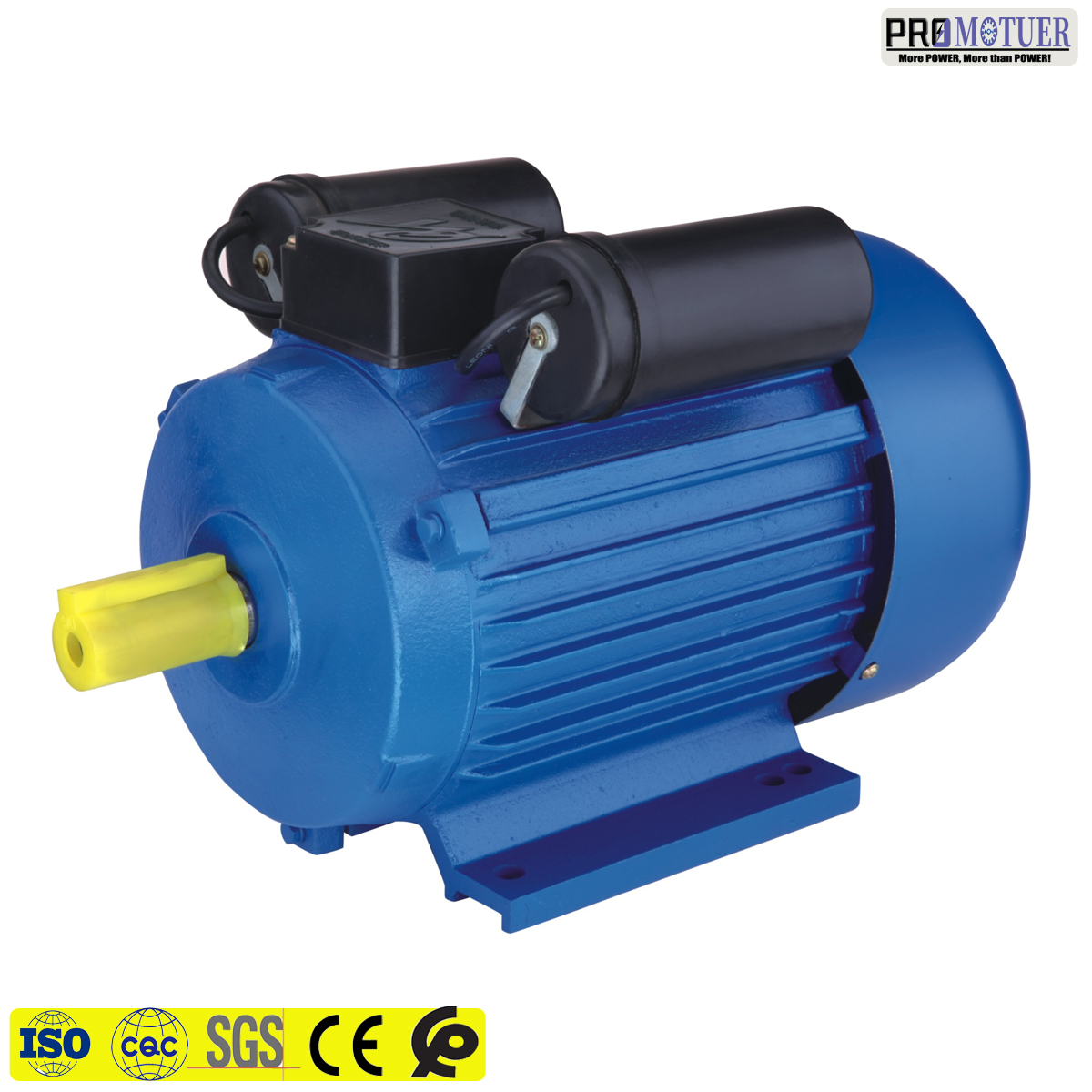

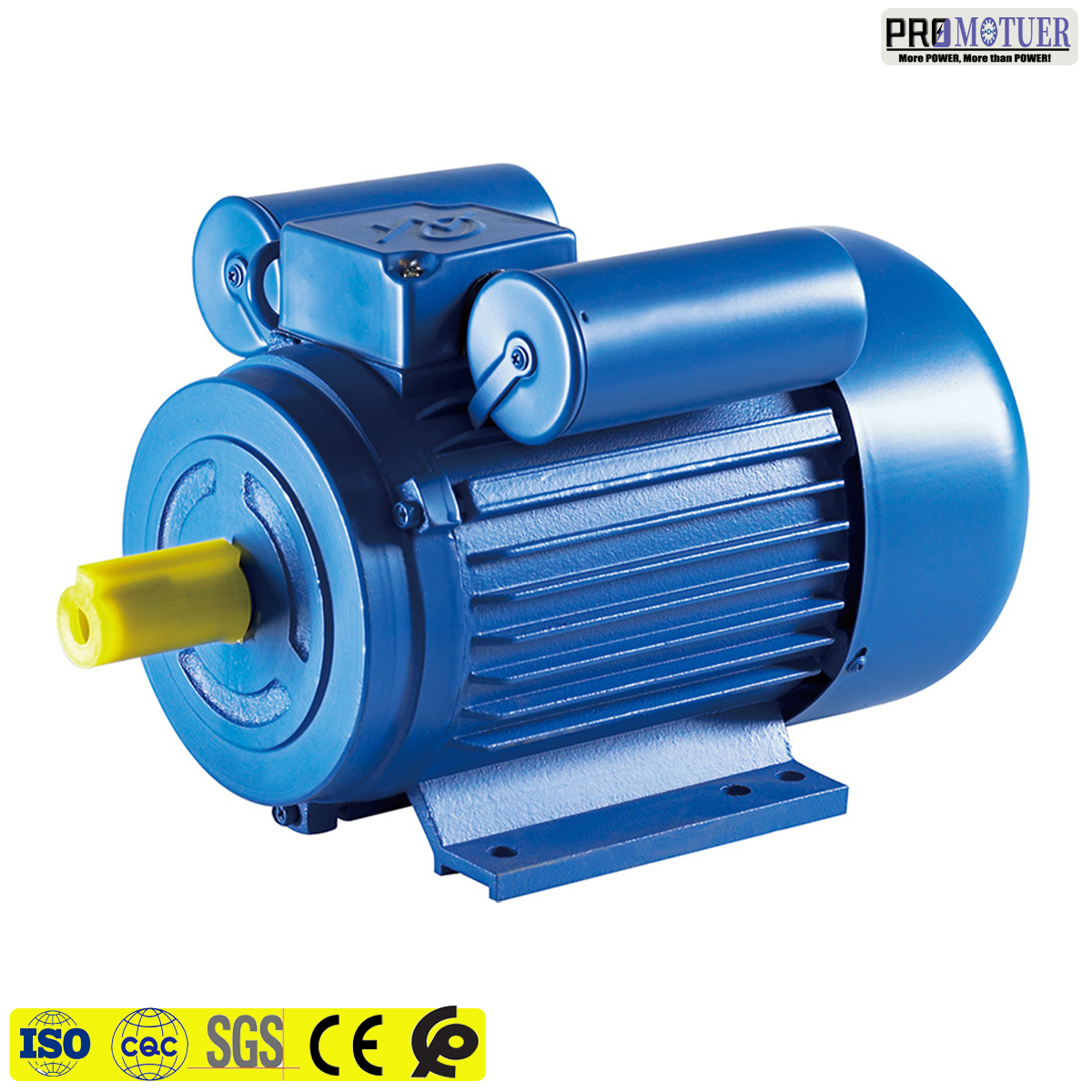

YL series single phase asynchronous motor

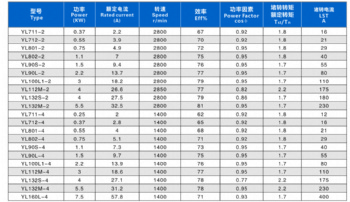

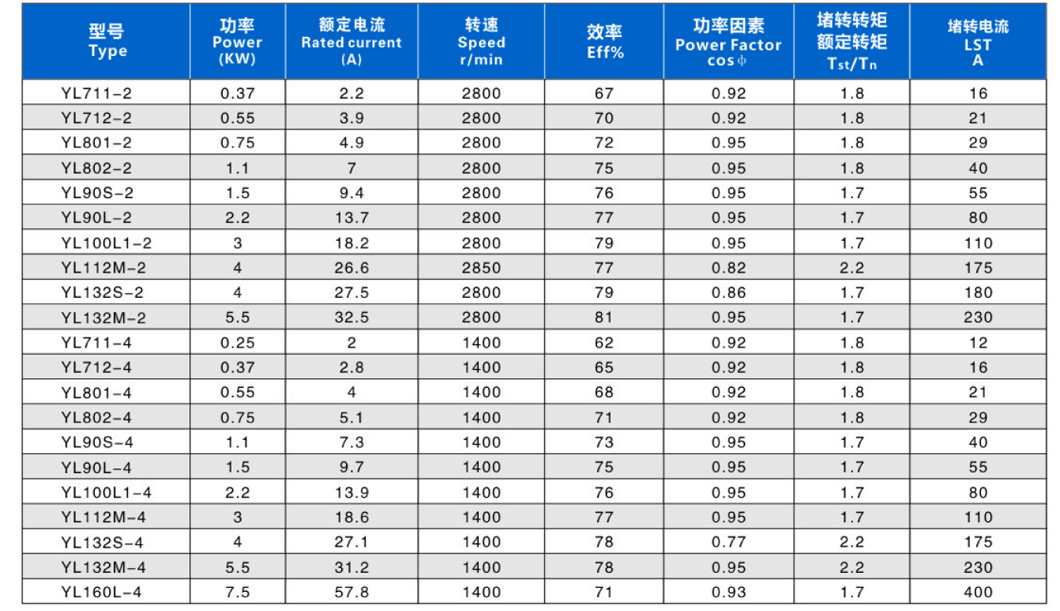

Parameter:

• Frame: 71-160mm.

• Power: 0.12-7.5KW.

• With starting and running capacitor

• Aluminum housing


• Protection class: IP44

• Insulation class: F

• Mounting type: Foot mount(B3), B5, B35, B14, B34.

• Cooling method: IC411

Application: Air compressors, pumps, washing machine, refrigerator, drilling machine etc.

Feature: Large starting torque, overload capacity, low temperature, low noise, energy saving.

Working condition: The altitude not exceeding 1000m above sea level. the ambient temperature subject to seasonal variations but not exceeding +40℃ and not less than -15℃.
